Hot runner nozzlesSLIM-LINE

Nozzle for narrow installation spaces and internal gating

Typ 01.030.

Product features

  • Requires little space
  • Quick colour changes
  • Ideally suited to the injection moulding of cosmetics items as well as caps and closures.
  • In combination with our cooling core, support for internal gating for internal article contours starting at 16mm
  • Heat conductive tips with metallic or screw-type connections
  • Short cycle times thanks to low heat input into the mould
  • Suitable for all types of plastic with up to 30% filler content
  • Built-in diameter 11–15mm
  • Flow channel diameter 3–4mm
  • Nozzle lengths 18.5–240mm
  • Shot weights 0.1–20g

Product types

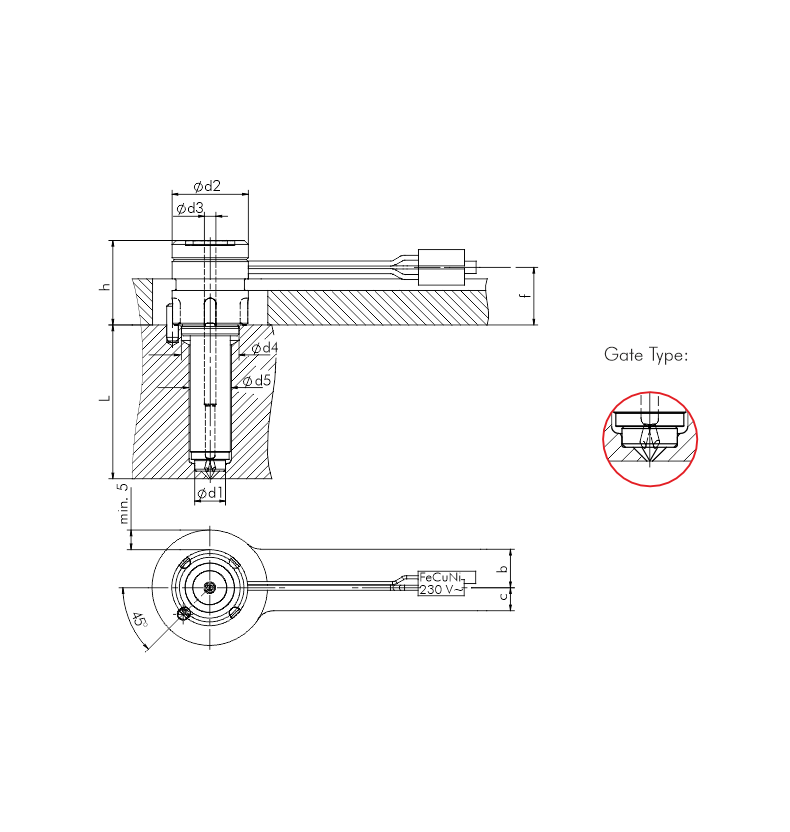

TypeLd1d2d3hfbc
01.030.08.L40 / 50 / 60 / 70 / 80 / 100 / 120 / 140 / 150 / 16082032214106
01.030.10.18,518,5102031514106
01.030.10.L40 / 50 / 60 / 80 / 100 / 120 / 140102042214106

Download Data sheet and CAD data
