Hot runner nozzles FLAT-LINE

Nozzle for the narrowest cavity spacing

Typ 01.041.

Product features

  • Supports individually controlled cavity spacing starting at 7mm
  • Heat conductive tips with metallic or screw-type connections
  • Replacement of heaters and temperature sensors can be performed by customer
  • Excellent suitability for the injection moulding of medical cuvettes and test vessels or electronic components using reel-to-reel processing
  • Short cycle times thanks to low heat input into the mould
  • Suitable for all types of plastic with up to 30% filler content
  • Built-in diameter 7–27mm
  • Flow channel diameter 2.5–6mm
  • Nozzle lengths 25–120mm
  • Shot weights 0.01–50g

Product types

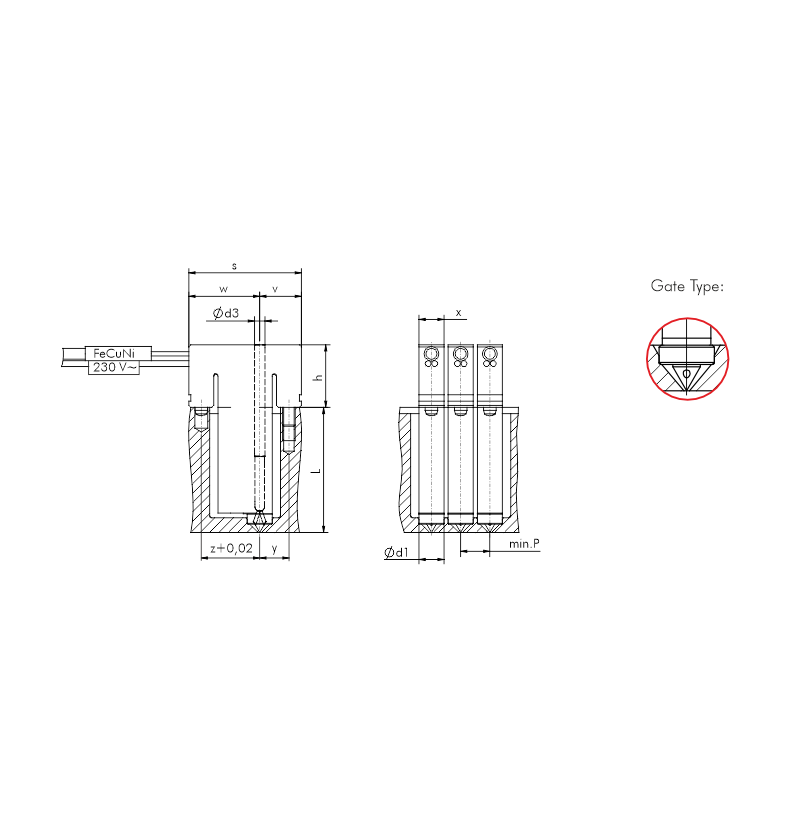

TypeLd1d3svwhxyzmin_P
01.041.05.L25 / 30 / 40 / 50 / 6052,52710171557145,5
01.041.06.L25 / 30 / 40 / 50 / 6062,52710171567147
01.041.08.L30 / 40 / 50 / 60 / 70 / 8083311417157111410
01.041.10.L40 / 50 / 60 / 801043815232210111914
01.041.16.L40 / 50 / 60 / 80 / 100 / 120166722745221616,53421

Download Data sheet and CAD data

Data sheet

Download

CAD-file

Download

Our product Configurator takes you to your perfect hot runner system

Use our Configurator to configure your custom hot runner product. You will immediately receive the necessary CAD data for your design process.

Go to Configurator
