Valve-gate nozzlesNV-PRIMO-LINE VB
Valve-gate nozzle – cost efficient – technically excellent and fast available
Type PL-NVBProduct types

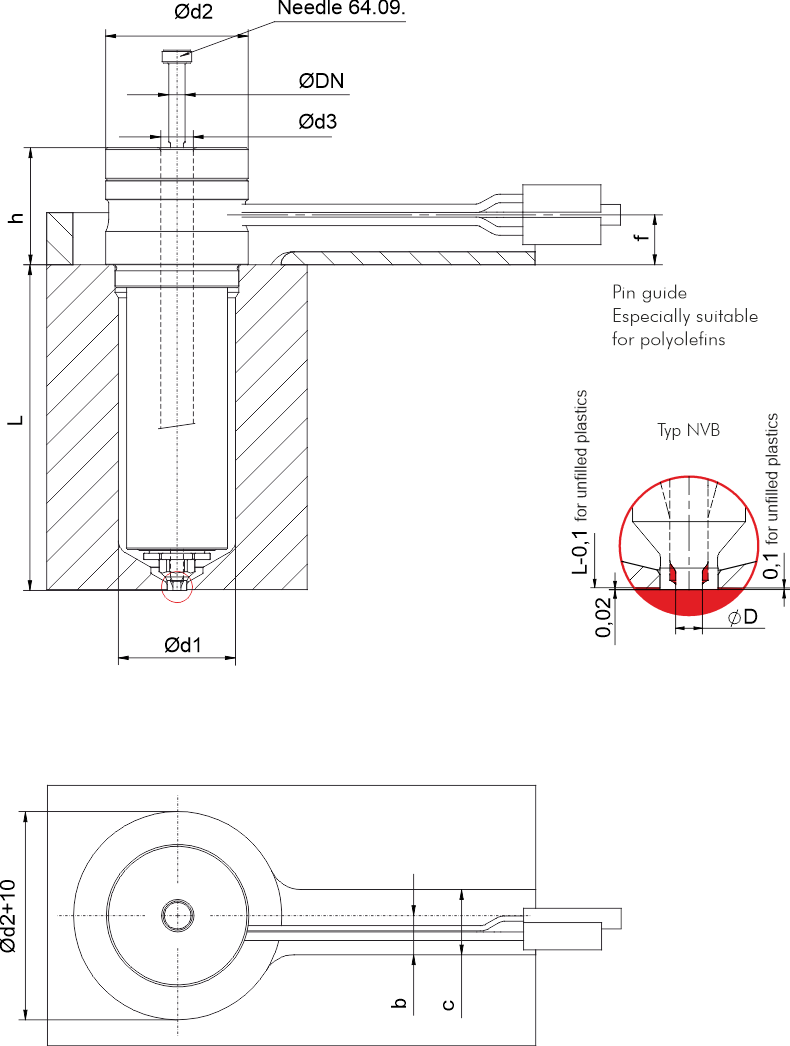

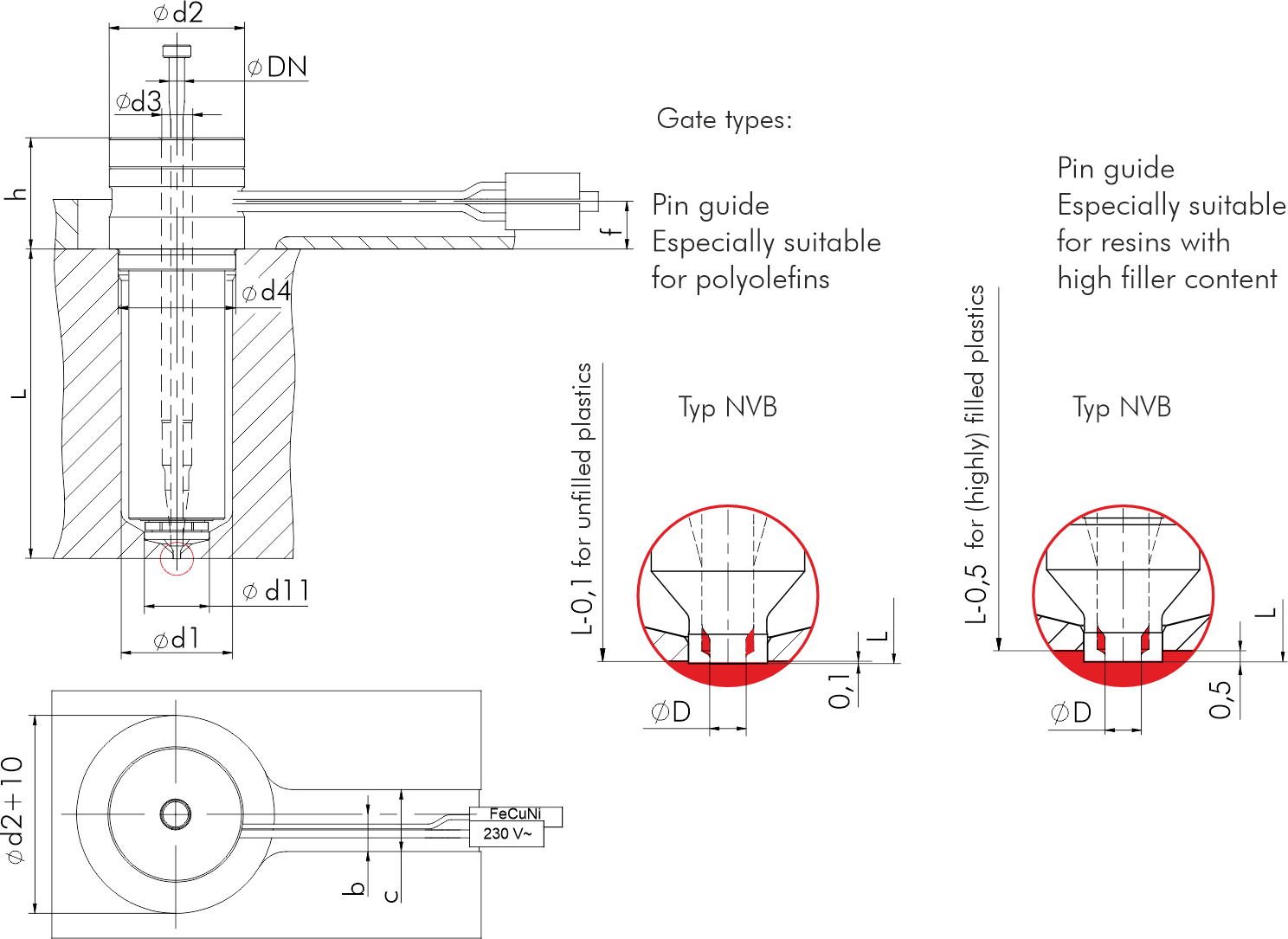

| Type | d1 | d3 | L | Spitze | ØD | d11 | d2 | h | d4 | f | b | c | DN |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PL18-d3-L-NVB | 18 | 5/6 | 50/60/80/100/120 | NVB | 0,8-2,0 | 10,5 | 21,9 | 18 | 19 | 7,7 | 6 | 10 | 2,5 |
| PL26-d3-L-NVB | 26 | 8/10 | 60/80/100/120/160 | NVB | 2,0/2,5/3,0 | 8 | 31,9 | 18 | 28 | 7,7 | 5 | 10 | 4 |
„Non-standard lengths available on request“
