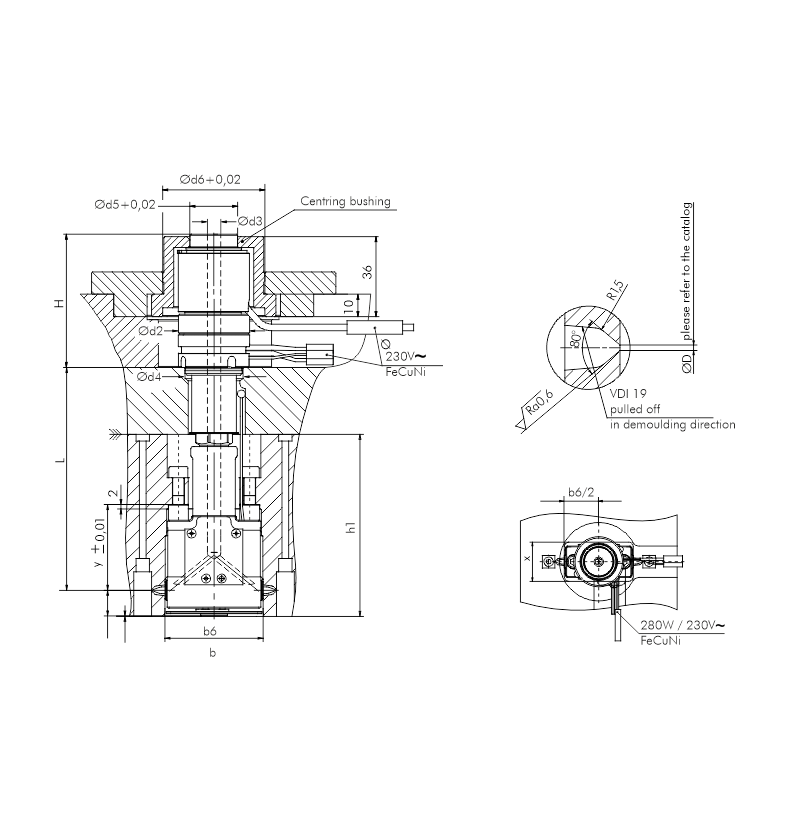

Hot runner nozzleSTAR-LINE-CROWN linear 2
Typ 01.076.44.02.
Product types
Type | b | b6 | n | L | d2 | d3 | d4 | Y | x | h |
---|---|---|---|---|---|---|---|---|---|---|
01.076.44.02.100 | 56 | 44 | 2 | 100 | 32 | 6 | 26 | 38,5 | 17 | 22 |
01.076.44.02.120 | 56 | 44 | 2 | 120 | 32 | 6 | 26 | 38,5 | 17 | 22 |
01.076.44.02.160 | 56 | 44 | 2 | 160 | 32 | 6 | 26 | 38,5 | 17 | 22 |
01.076.44.02.200 | 56 | 44 | 2 | 200 | 32 | 6 | 26 | 38,5 | 17 | 22 |
01.076.64.02.120 | 86 | 64 | 2 | 120 | 46 | 9 | 38 | 50 | 25 | 27 |
01.076.64.02.160 | 86 | 64 | 2 | 160 | 46 | 9 | 38 | 50 | 25 | 27 |
01.076.64.02.200 | 86 | 64 | 2 | 200 | 46 | 9 | 38 | 50 | 25 | 27 |
01.076.64.02.220 | 86 | 64 | 2 | 220 | 46 | 9 | 38 | 50 | 25 | 27 |
