Hot runner nozzleSTAR-LINE-CROWN mini
Type. 01.072., 01.272
Product features
- Nozzle for radial arrangement of parts
- No separation of mould inserts
- Tip exchange and gate well area cleaning on the machine only take a few minutes
- Excellent temperature profile, making it equally suitable for engineering plastics such as PA, PBT and PEEK
- Great design freedom
- Excellent suitability for micro injection moulding, small batch and prototype moulds
- Built-in diameter of nozzle: 44 mm
- Melt channel diameter: 6 mm
- Nozzle length: 24.5 mm
- Arrangement of parts: Ø 56mm
- Efficient use of energy and resources
- Part weight/tip: 0.05–5g
- Number of tips/nozzle: 1–8
- 230V, external heating

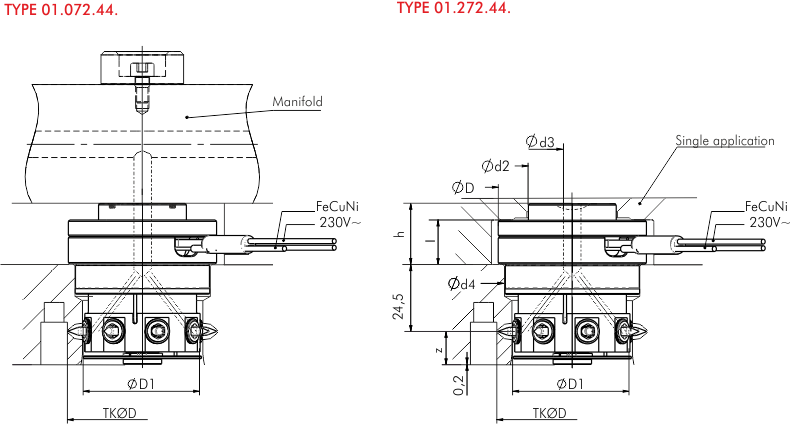

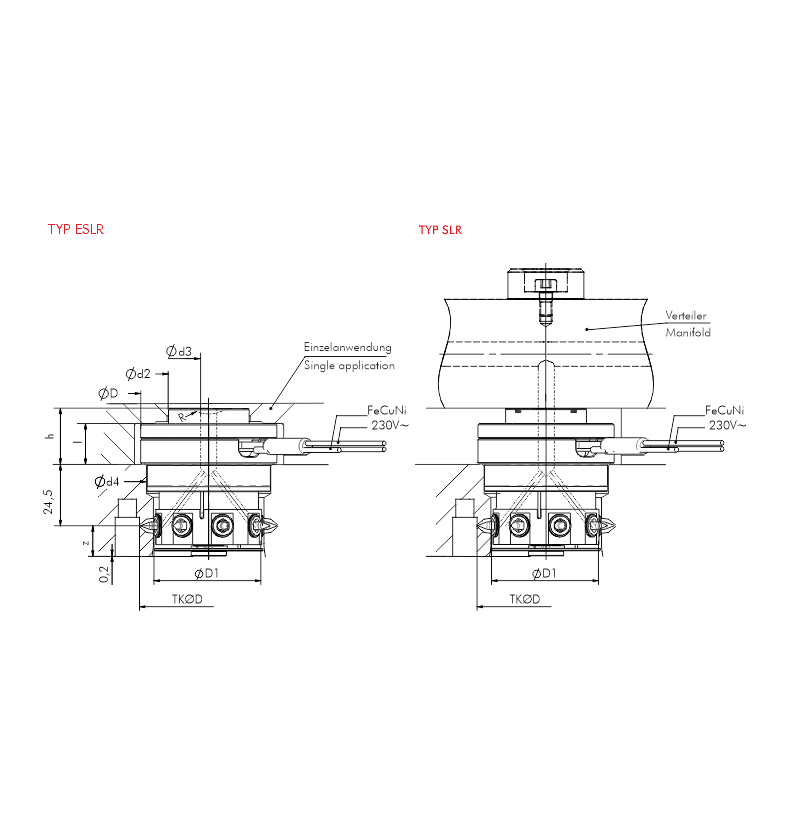

Product types
| Typ | D | n | L | D1 | d2 | d3 | d4 | I | h | r | ||
| 01.072-44 | 56 | 1-8 | 24,5 | 44 | 32 | 6 | 49 | 16 | 22 | 12 | ||
| 01.272-44 | 56 | 1-8 | 24,5 | 44 | 32 | 6 | 49 | 16 | 22 | 12 |
