Hot runner nozzlesFIRST-LINE

Standard nozzle

Typ 01.010.
Heisskanaldüse First Line HEITEC Heisskanaltechnik 790x700 hot runner nozzle

Product features

  • Excellent temperature profile
  • Heat conductive tips with metallic or screw-type connections
  • Suitable for all types of plastic
  • Additional thermal separation between nozzle heating pipe and body for optimal isolation from mould
  • Up to 5mm nozzle extension possible
  • Excellent vestige quality
  • Handles up to 2000 bars of injection pressure
  • Built-in diameter 13–30mm
  • Flow channel diameter 3–9mm
  • Nozzle lengths 22–350mm
  • Shot weights 0.05–1800g

Product types

TypeLd1d2d3hfmbc
01.010.13.22221317315914,8106
01.010.13.L40 / 50 / 60 / 70 / 8013173221614,8106
01.010.15.22221520315918106
01.010.15.L30 / 40 / 50 / 60 / 70 / 80 / 90 / 100 / 110 / 12015204221518106
01.010.20.L30 / 40 / 50 / 60 / 70 / 80 / 90 / 100 / 110 / 12020305221527106
01.010.26.L40 / 60 / 80 / 90 / 100 / 12026406302136146
01.010.30.L60 / 80 / 10030409302136206

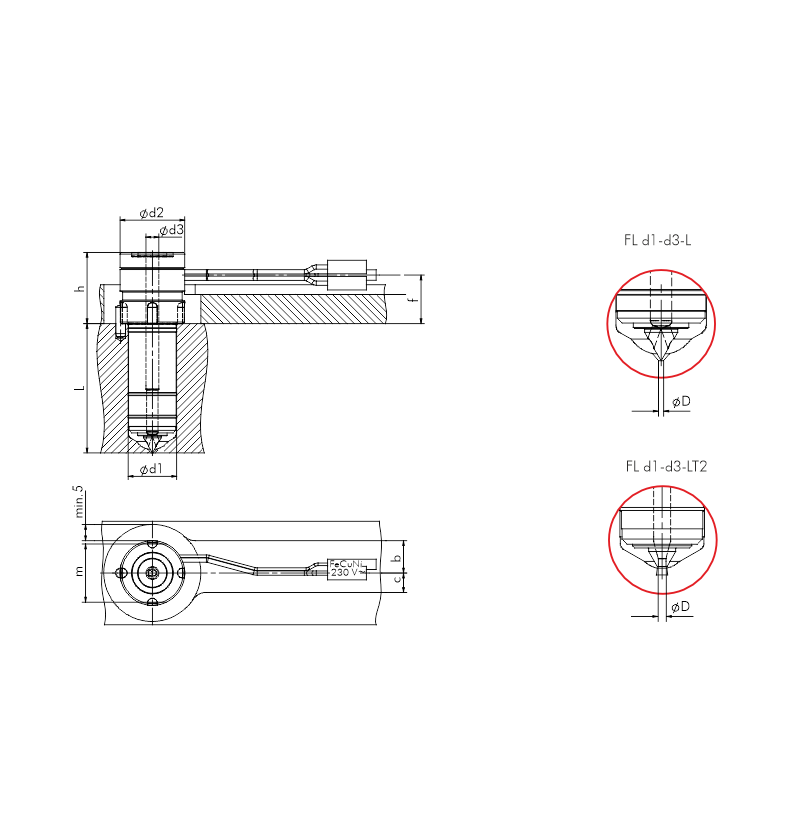

Heisskanaldüse first line Zeichnung 01010

Single nozzle

This nozzle is also available as a single nozzle.
