Valve-gate nozzlesNV-PRIMO-LINE
Valve-gate nozzle – cost efficient – technically excellent and fast available

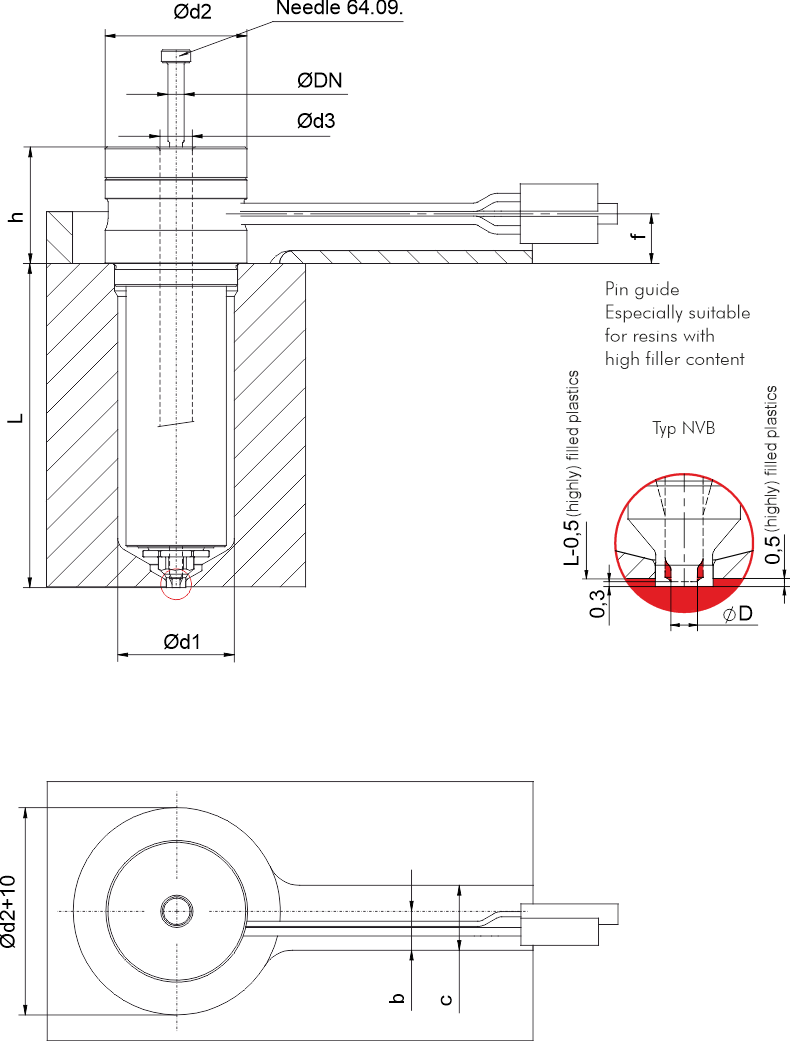

Type 61.001.65.1Product types
| Type | D | DN | d1 | d2 | d3 | d4 | d11 | L | h | f | b | c | Tip |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 61.001. | 1,2/1,4/1,6 /1,8/2,0 | 2,5 | 18 | 21,9 | 5/6 | 22 | 10,5 | 50/60/80/100/120 | 18 | 7,7 | 6 | 10 | 65.1 |
