Valve-gate nozzlesNV-PRIMO-LINE
Valve-gate nozzle – cost efficient – technically excellent and fast available

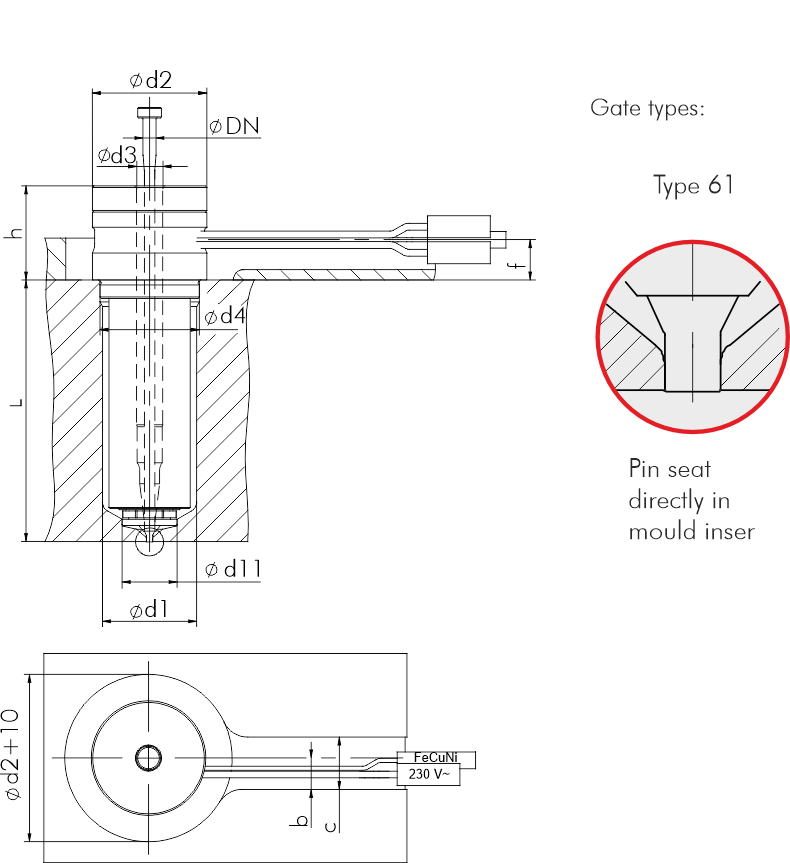

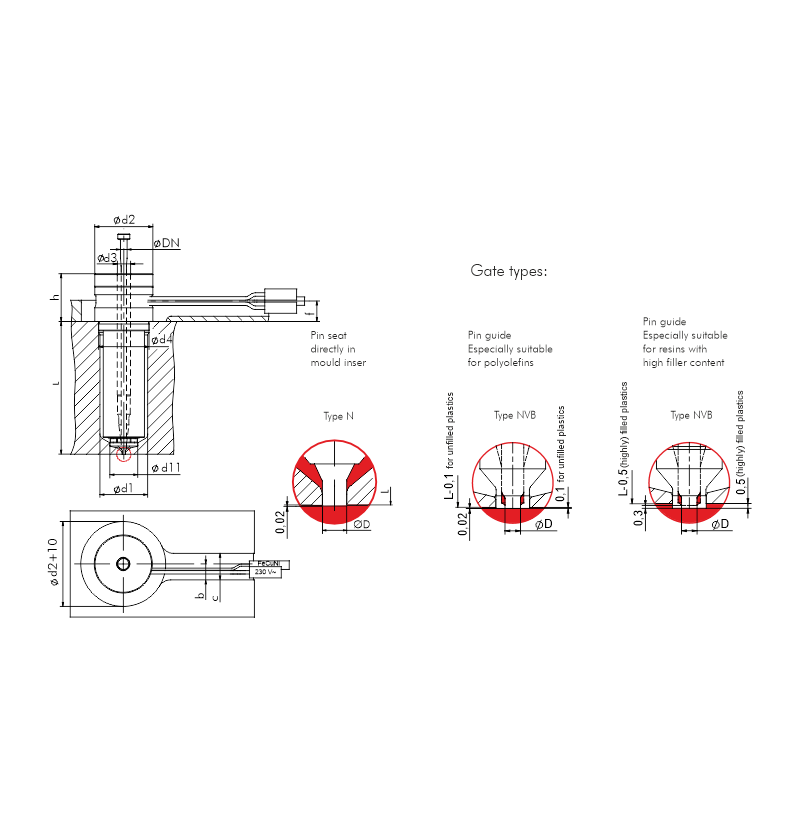

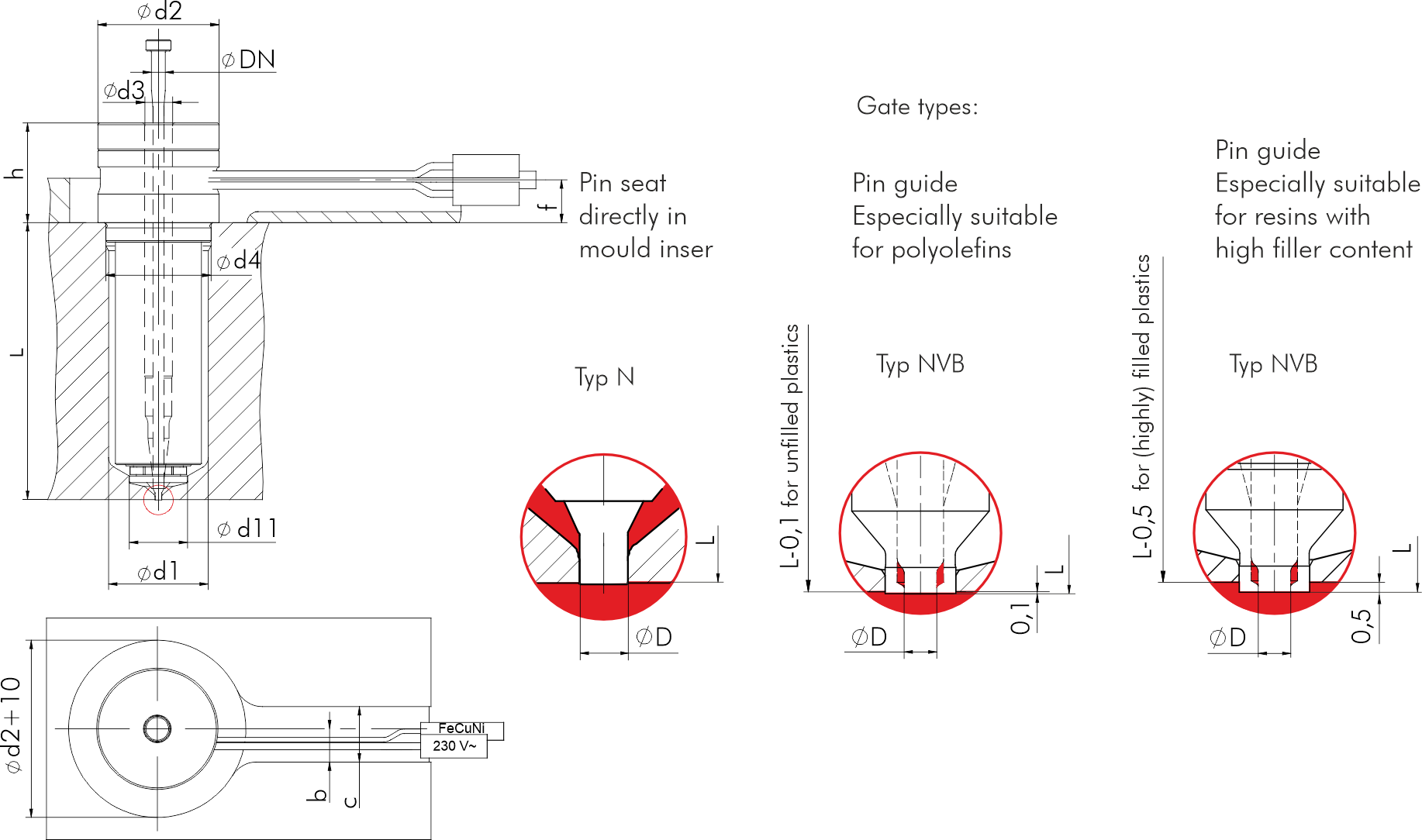

Type 61.001.Product types
| Type | DN | d1 | d2 | d3 | d4 | d11 | L | h | d4 | f | b | c | Tip |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 61.001. | 2,5 | 18 | 21,9 | 5/6 | 19 | 10,5 | 50/60/80/100/120 | 18 | 19 | 7,7 | 6 | 10 | 61 |
„Non-standard lengths available on request“
