Valve-gate nozzlesNV-FIRST-LINE

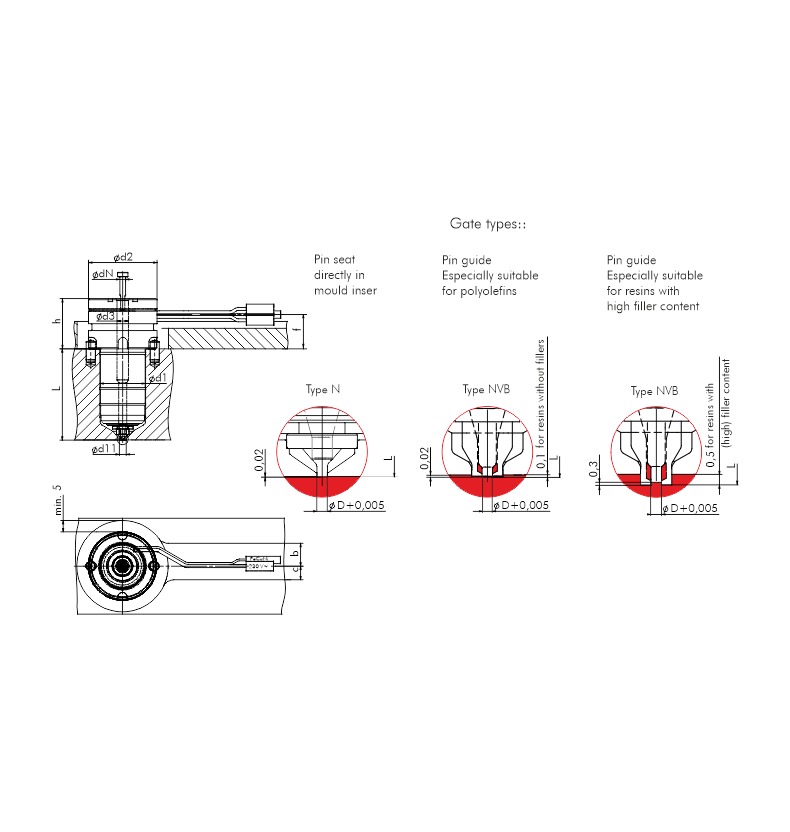

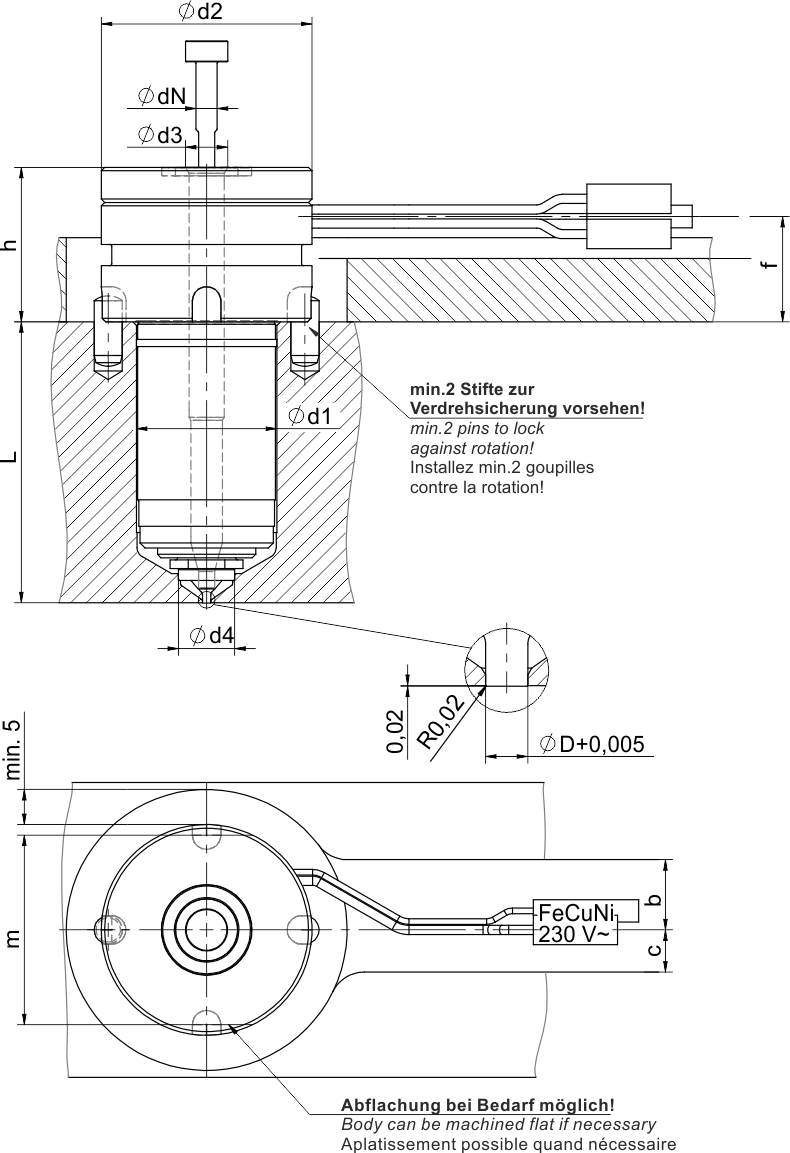

NV-NOZZLE, STANDARD
Type FL-NProduct types
| Type | d1 | d3 | L | Spitze | D | d2 | dN | d11 | h | f | b | c |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| FL15-4-L-ND | 15 | 4 | 50-110 | N | 0,8-2,0 | 20 | 2,5 | 3 | 22 | 15 | 10 | 6 |
| FL20-5-L-ND | 20 | 5 | 50-120 | N | 0,8-2,0 | 30 | 3,0 | 3 | 22 | 15 | 10 | 6 |
| FL26-6-L-ND | 26 | 6 | 60-120 | N | 0,8-2,0 | 40 | 3,0 | 3,5 | 30 | 21 | 14 | 6 |
| FL30-6-L-ND | 30 | 6 | 60-120 | N | 0,8-2,0 | 40 | 4,0 | 6,0 | 30 | 21 | 20 | 6 |
„Non-standard lengths available on request“
