Hot runner nozzlesPRIMO-LINE
technically excellent and fast available
Type PL
Product features
- nozzle with 5 different lenghts
- Exchangeable by the customer:
Tip, Heater and Thermocouple
230V external heating - Cost efficient
- Technically excellent
- Fast available
- Optimal thermal separation between nozzle and mould
Product types

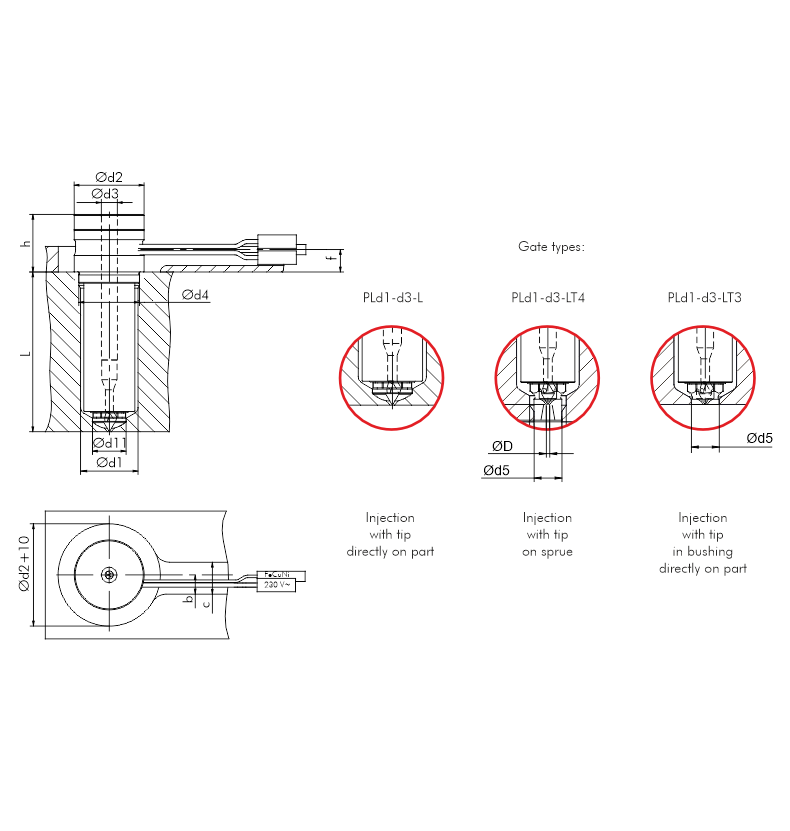

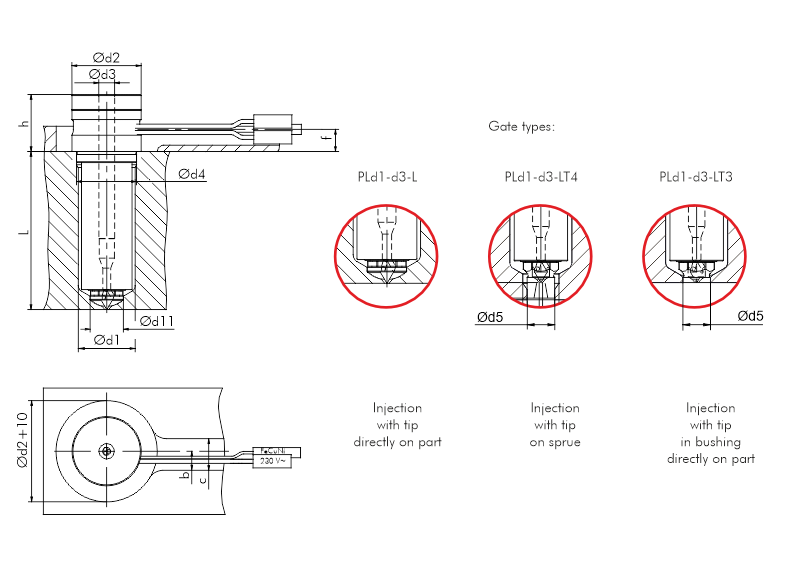

| Type | d1 | d2 | d3 | d4 | d11 | L | h | f | b | c | d5 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| PL18-d3-L | 18 | 21,9 | 3/5/6 | 19 | 10,5 | 50/60/80/100/120 | 18 | 7,7 | 6 | 10 | 8 |
| PL26-d3-L | 26 | 31,9 | 8/10 | 28 | 17,5 | 60/80/100/120/160 | 18 | 7,7 | 6 | 10 |
„Non-standard lengths available on request“
